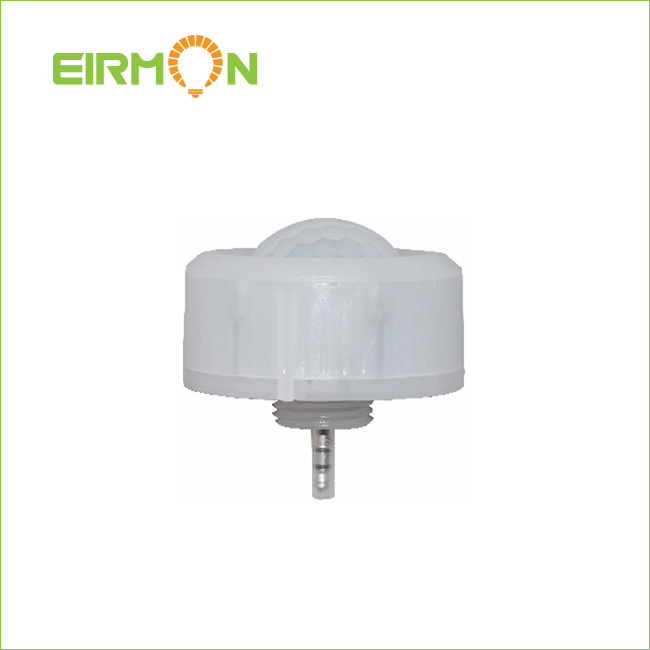

Motion Sensor For Linear Highbay （50PCS/Pack）

US$ 786.50

Customized Requirements

Estimate Shipping Cost

Detail

Please Contact Our Sales At Sales@eirmonled.com

For Discounted Prices.

Product Name	Motion Sensor for Linear Highbay
Model No.	ANT-5-4T
Sytem #	20600060
Power Supply	12V-24V DC, >50mA
Dim Control Output	0-10V, max. 25mA Sinking Current
HF System	5.8GHz±75MHz
Transmission Power	<0.2mW
Detection Radius	20% / 50% / 75% / 100% (1-8m)
Mounting Height	Max 50ft. (15Meters)
Time Setting	10s/ 1min / 5min / 10min / 15min / 20min / 30min / 60min
Light-control	24H / 10LUX / 30LUX / 50LUX
Temperature	-4°F ~ +140°F (-20℃ ~ +60℃)
IP Rating	IP65
